Two-Wheeler Digital Connected Cluster

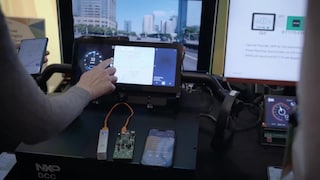

The two-wheeler digital connected cluster (DCC) reference platform delivers high-performance, automotive-grade, graphics and rich connectivity experience for an enhanced two-wheeler driving experience. Our advanced DCC is powered by the i.MX 95 processor, providing AI/ML acceleration and Functional Safety capabilities for digital clusters targeting mid- to high-end two-wheelers, while the i.MX RT1170 crossover MCU, which powers our entry level DCC, enhances connectivity and multimedia experiences at low costs. This combination enables features such as three-way Bluetooth pairing, secure vehicle access, and phone projection capabilities for a seamless and intelligent riding experience.
Application Details
Interactive Block Diagram
For the best experience interacting with diagrams, please use a larger screen or maximize your browser window.
Select a block diagram:
Block Diagram
- DCC 1.0 (i.MX RT1170-based)
- DCC 2.0 (i.MX 95-based)
MCU
-
i.MX-RT1170:
i.MX RT1170: 1 GHz Crossover MCU with Arm® Cortex® Cores
Wi-Fi / Bluetooth
-
AW611:
2.4/5 GHz Dual-Band 1x1 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.4 Automotive Solution
CAN PHY
-
TJA1044:
High-Speed CAN Transceiver with Standby Mode - Mantis Family
BLE
-
KW45:
KW45: 32-Bit Bluetooth® 6.0 Long-Range MCUs with CAN FD and LIN Bus Options, Arm® Cortex®-M33 Core
PMIC
Wi-Fi / Bluetooth
-
AW693:
2x2 Dual-Band (5-7 GHz), 1x1 (2.4 GHz) Concurrent Dual Wi-Fi 6/6E and Bluetooth 5.3 Combo Solution
MPU
-
i.MX95:
i.MX 95 Applications Processor Family: High-Performance, Safety Enabled Platform with eIQ® Neutron NPU
