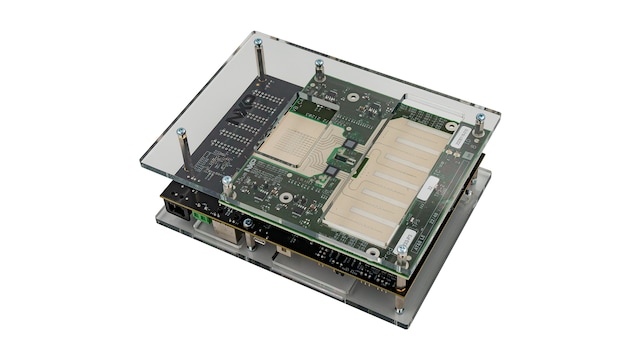

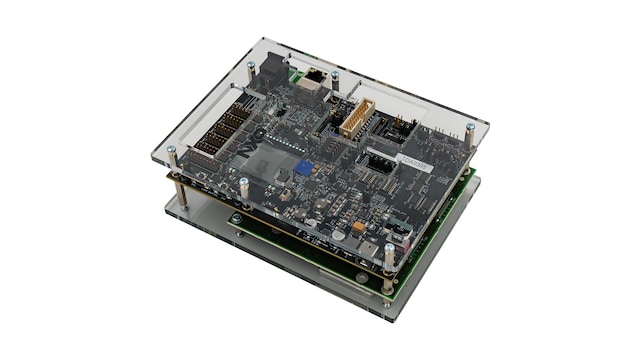

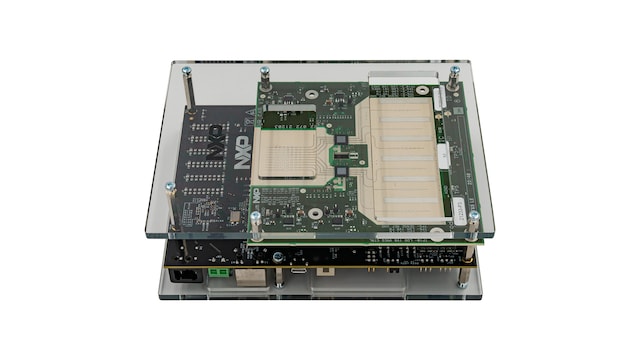

S32R41 and TEF82xx Development Platform Based on S32R41 EVB and TEF82xx CAB

TEF82-R41-KIT

Roll over image to zoom in

The S32R41 and TEF82xx development platform is designed for enabling users to start radar development quickly and easily by providing an example software project based on the S32R41 evaluation board (EVB) and the TEF82xx customer antenna board (CAB). It integrates several NXP software components, including auto zephyr BSP, radar SDK (RSDK), real-time drivers (RTD), inter-platform communication framework (IPCF) and safety software framework (SAF).

Block Diagram

S32R41 + TEF82 Development Platform

S32R41 + TEF82 Development Platform
Get diagram PDF

Supported Devices

Interfaces

3.3 V / 5 V IO CAN Transceivers

  • TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode

Automotive Ethernet PHYs

  • TJA1103: TJA1103, ASIL B Compliant Automotive Ethernet 100BASE-T1 PHY Transceiver

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • FS86: Safety System Basis Chip For Domain Controller, Fit For ASIL B and D

Processors and Microcontrollers

S32R Radar Processing

  • S32R41: S32R41 High-Performance Processor for High-Resolution Radar

RF

Radar Transceivers and SoCs

  • TEF82xx: Fully Integrated 77 GHz RFCMOS Automotive Radar Transceiver

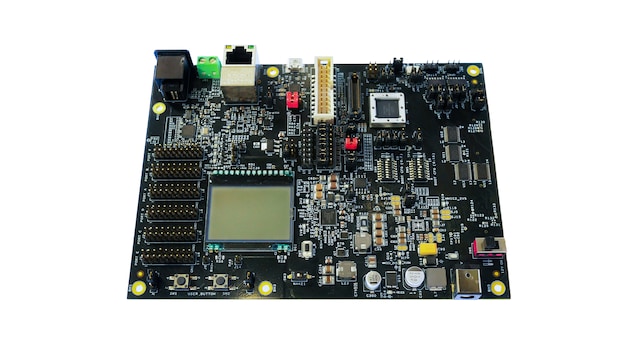

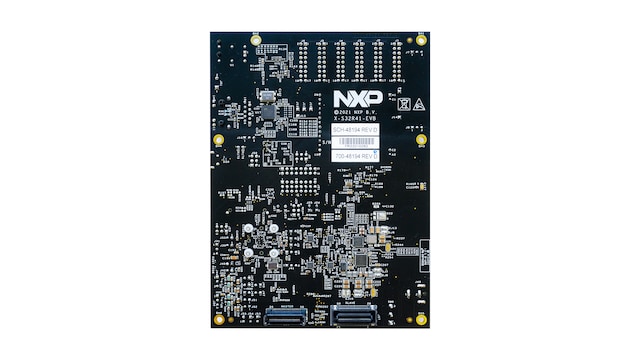

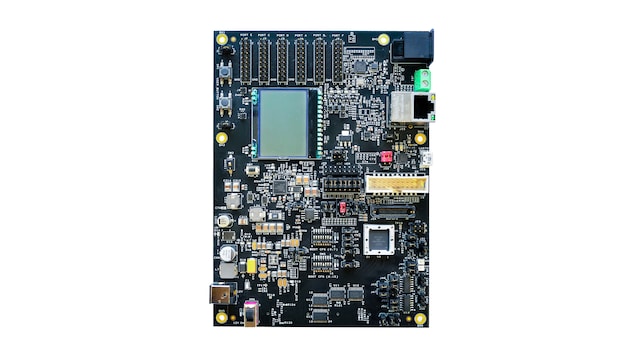

Features

General Features

  • S32R41 radar MPU
  • Single 12 V external power supply input with necessary EVB and MCU voltages provided by an NXP power management IC (PMIC) solution
  • Power supplied to the EVB via a 2.1 mm barrel style power jack; 12 V operation allows in-car use if desired
  • Master power switch and regulator status LEDs
  • Flexible MCU clocking options allow provision of an external clock via adaptor board (via MIPI-CSI0 connector) or 40 MHz EVB clock oscillator circuit. Solder pads allow selection between these external clocks
  • Boot mode selection via switches on board

Memory

  • 64 Mb (16 MB) serial NOR flash memory
  • 1 Kb EEPROM connected to MCU via I²C

Connectivity

  • Standard 20-pin ARM JTAG debug connector and 34-pin nexus aurora connector
  • RGMII Gb ethernet physical interface IC, with RJ45 connector
  • RMII / MII 100 Mb ethernet physical interface IC with matenet connector
  • Two high speed connectors intended for direct use with the TEF820X CAB board
  • All MCU signals readily accessible at a port-ordered group of 0.1” pitch headers
  • 2x CAN-FD interfaces
  • UART to micro USB interface
  • 2 user switches and 4 user LEDs, freely connectable
  • 64 * 102 character LCD with DSPI interface (DSPI0)
  • User reset switch with reset status LED

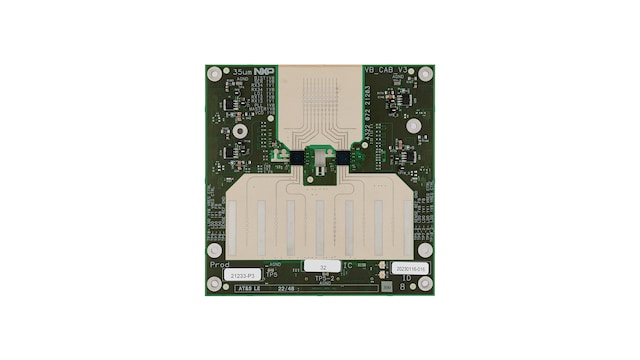

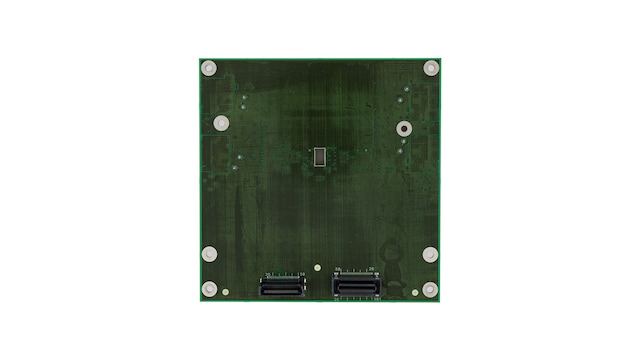

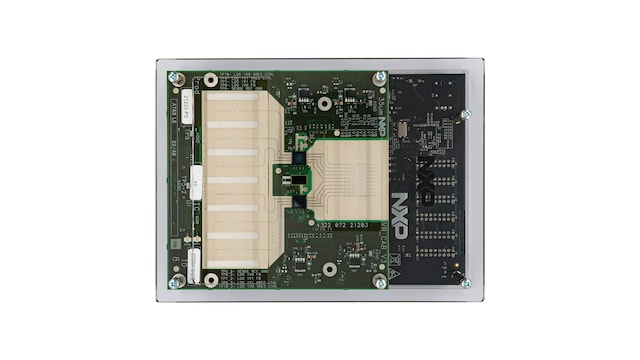

TEF82xx Customer Antenna Board (CAB)

  • Dual TEF82xx RF front-end board through different MIPI-CSI2 / SPI joint connectors. Free choice of the two different front ends through a jumper configuration
  • RF RX / TX channels wired to 6 Tx x 8 Rx antenna array
  • Optimized for 78 GHz operation

Buy Options

S32R41-EVB-Image

Click to expand

S32R41-EVB
Active

S32R41 Evaluation Board.

    $1400.00 USD
    In Stock :1

    Normally ships 1-2 business days

    ADD TO CART
    TEF82-R41-KIT-Image

    Click to expand

    TEF82-R41-KIT
    Active

    S32R41 and TEF82xx Development Platform Based on S32R41 EVB and TEF82xx CAB.

      $3400.00 USD
      Pending Stock
      ADD TO CART
