Evaluation Systems for S32R264, S32R274, and S32R372

S32RXXXEVB
Active

Roll over image to zoom in

The S32RXXXEVB is an evaluation system engineered for high-performance radar applications. The system consists of an MPC57XXXMB and either an S32R274EVB or S32R372EVB to enable flexible and straightforward hardware and software development.

Based on the 32-bit Power Architecture® based S32R264 and S32R274 radar microcontrollers, the S32RXXXEVB is a modular development platform that can be used either as a daughter card in conjunction with the general MPC57xx motherboard or as a standalone solution; allowing to start with the software development and to experience the highly integrated Radar Signal Processing Toolbox (SPT) along with its functional safety and hardware security features (CSE2).

Supported Devices

Processors and Microcontrollers

S32R Radar Processing

  • S32R37: Microcontrollers for Optimized Radar
  • S32R2X: S32R26 and S32R27 Microcontrollers for High-Performance Radar

Features

Microcontroller

  • Board options:

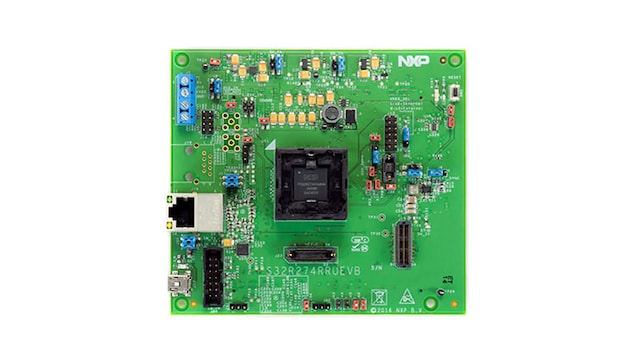

    • S32R274RRUEVB: S32R274 in 257 BGA Radar MCU (socketed)
    • S32R372RRSEVB: S32R372 in 257 BGA Radar MCU (socketed)

Connectivity

  • Standard 14-pin JTAG debug connector and 34-pin Nexus Aurora connector
  • 10-pin Serial Interprocessor Interface (SIPI) connector
  • Gbit Ethernet Physical interface IC, with RJ45 connector
  • MIPI-CSI2 connector

User Components

  • User reset switch with reset status LEDs
  • Flexible MCU clocking options (external clock via SMA connector or 40 MHz EVB clock oscillator circuit)

Buy Options

S32R372RRSEVB-Image

Click to expand

S32R372RRSEVB
Active

Evaluation Systems for S32R264, S32R274, and S32R372.

    $545.00 USD
    Pending Stock
    ADD TO CART
    Order from distributors
    S32R274RRUEVB-Image

    Click to expand

    S32R274RRUEVB
    Active

    S32R274RRUEVB.

      Order from distributors
