S32M24x PMSM/BLDC Motor Control Evaluation Board

S32M24XEVB
Active

Roll over image to zoom in

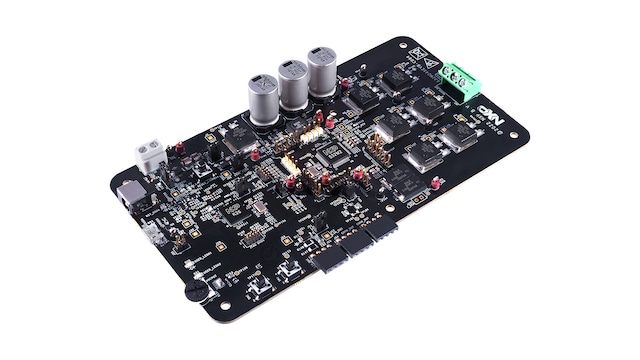

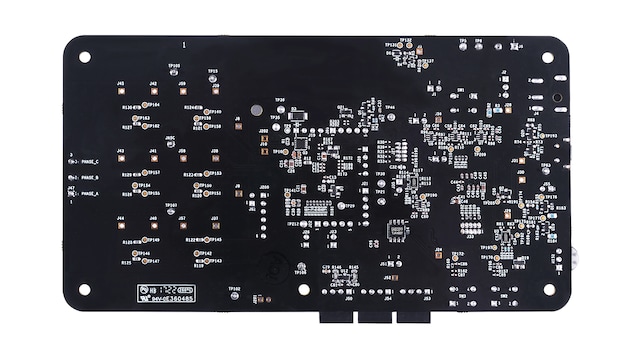

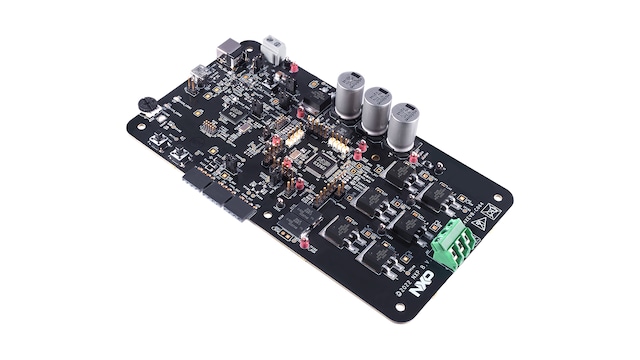

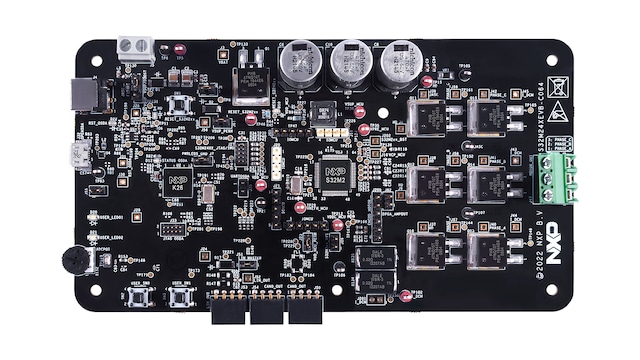

The S32M24xEVB-C064 and S32M24xEVB-L064 are evaluation boards engineered for 3-phase brushless direct current (BLDC) and permanent magnet synchronous motor (PMSM) control applications like electric pumps, cooling systems and actuators, used in sunroof control or seat position adjustment.

Based on the S32M24x integrated solution that offers a 32-bit Arm® Cortex®-M4 S32K1 microcontroller and an analog die with voltage regulator, gate driver, current sensing and LIN/CAN physical layer in a system-in-package (SiP) design, this evaluation board enables rapid prototyping and evaluation of BLDC and PMSM control applications without having to wait for the final hardware design.

The S32M24xEVB-C064 and S32M24xEVB-L064 leverage the MCSPTE1AK344 application software with the Automotive Math and Motor Control Library (AMMCLib) set plus Real-Time Drivers (RTD) software package to provide a complete reference implementation for both 3-phase BLDC and PMSM motor control.

Block Diagram

Choose a diagram:

S32M24 EVB with LIN Interface

S32M24 EVB with LIN interface

S32M24 EVB with CAN Interface

S32M24 EVB with CAN interface

S32M24XEVB FOC Application

-S32M24XEVB FOC Application Block Diagram

S32M24XEVB BLDC 6-Step Application

S32M24XEVB BLDC 6-Step Application Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

S32M Integrated Solutions for MC

  • S32M2: S32M2 Integrated Solution for 12V Motor Control

K2x / KS2x USB

  • K26_180: Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Interfaces

CAN Signal Improvement

  • TJA1462: CAN Signal Improvement Capability Transceiver with Standby Mode

Automotive LIN Solutions

  • TJA1027: LIN 2.2A/SAE J2602 Transceiver

Features

Hardware Features

  • S32M24xEVB-C064 designed for 3-phase PMSM or BLDC motor, with internal CAN PHY and external LIN PHY
  • S32M24xEVB-L064 designed for 3-phase PMSM or BLDC motor, with internal LIN PHY and external CAN PHY
  • Position/Speed Sensor options: encoder, HALL or sensorless techniques
  • Voltage/current Sensors: DC Bus voltage and current, phase voltages, BEMF voltages, over current/voltage/temperature protections

Software Compatibility

S32M24xEVB-C064 Interfaces

  • CAN (FD) physical layer integrated in S32M2

S32M24xEVB-L064 Interfaces

  • LIN physical layer integrated in S32M2

Debug Interfaces

  • On board PEmicro debugger (micro-USB connector) with virtual COM port for serial communication
  • 10pin JTAG/SWD connector

Enablement

  • ANSI-C based example SW created in S32 Design Studio for S32 Platform built on S32M24x RTD drivers
  • Model-Based Design Toolbox (MBDT) example SW built on S32M24x RTD drivers
  • FreeMASTER visualization/configuration support
  • MCAT tool - part of software package
  • MCU peripherals initialization generated by S32DS Configuration Tool (CT)

Buy Options

S32M24XEVB-L064-Image

Click to expand

S32M24XEVB-L064
Active

S32M24x PMSM/BLDC Motor Control Evaluation Board.

    $199.00 USD
    In Stock>100

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    S32M24XEVB-C064-Image

    Click to expand

    S32M24XEVB-C064
    Active

    S32M24x PMSM/BLDC Motor Control Evaluation Board.

      $199.00 USD
      In Stock :88

      Normally ships 1-2 business days

      ADD TO CART
      Order from distributors
