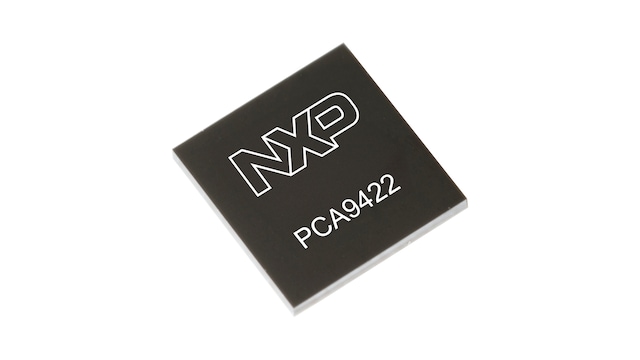

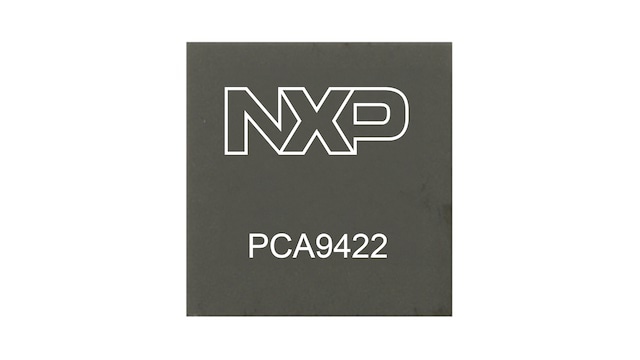

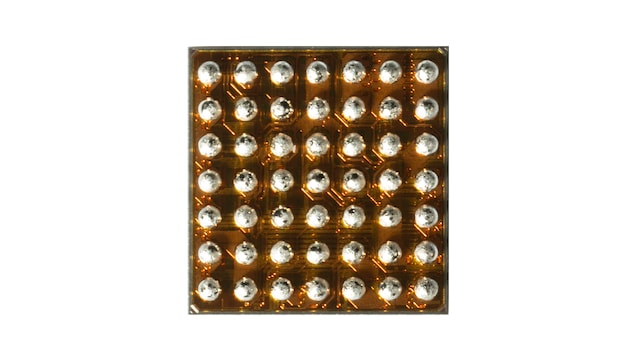

PCA9422 is a highly-integrated Power Management IC (PMIC), targeted to provide a full power management solution for low power microcontroller applications or other similar applications with small batteries.
The device consists of a JEITA compliant linear battery charger capable of charging up to 640 mA current. It has I²C programmable values for flexible configuration. Various built-in protection features such as input overvoltage protection, overcurrent protection, thermal protection are also provided for safe operation. PCA9422 also introduces FLEXGAUGE™ which allows for zero incremental cost battery gauging when combined with NXP MCU.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
