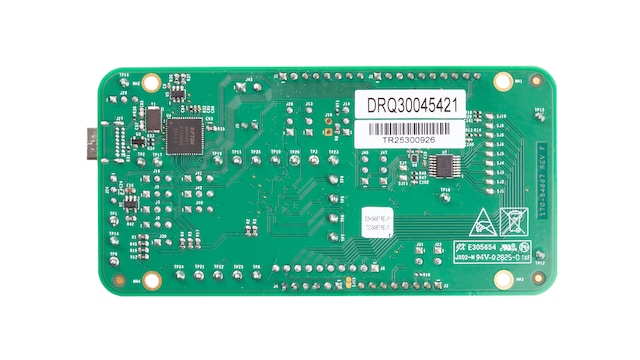

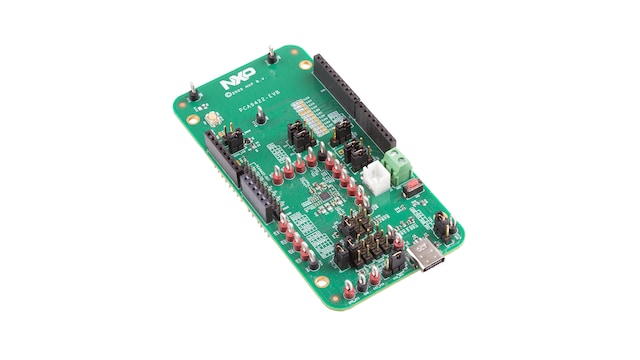

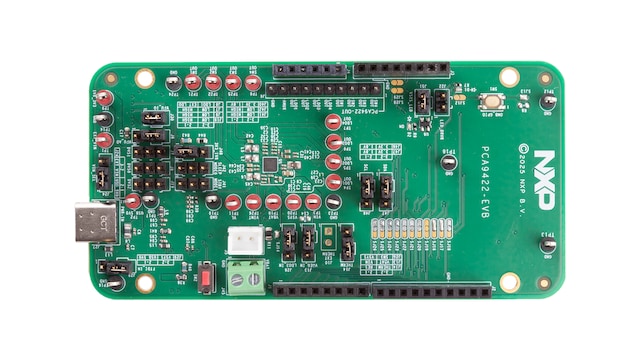

The PCA9422-EVB evaluation board is an easy-to-use circuit board allowing the user to exercise all the functions of the PCA9422 Power Management IC (PMIC). The EVB supports Arduino® UNO interface. An onboard analog-to-digital converter is used to monitor all regulator voltages through the GUI.

Product Details

Block Diagram

PCA9422 Evaluation Board

PCA9422 Evaluation Board

Get diagram PDF

Supported Devices

Power Management

5 V PMIC Solutions

PCA9422: PCA9422 Ultra Low Power Charger+Gauge PMIC for RT5/6/700

Features

General Specifications

Numerous test points provide easy access for monitoring all power and signal nodes
Arduino UNO compatible
Six layer board layout supports standard design rules

Connectivity

Standard USB-C connector for communication with PC

Power Management

3 BUCK converters, 1 BUCK-BOOST converter, and 4 LDOS
Single-Cell Li/LiPo + linear battery charger
Terminal block charging connector
JEITA-compliant battery temp sensing
An analog-to-digital converter (ADC) used to monitor all regulator voltages

Buy Options

PCA9422-EVB-Image

Click to expand

PCA9422-EVB
Active

PCA9422 Evaluation Board.

Kit Contains

Assembled and tested PCA9422-EVB evaluation board in an anti-static bag
Available evaluation board revisions:
- SCH Rev F1 includes the PCA9422B PMIC version, operating all buck regulators at 4 MHz
- SCH Rev F2 includes the PCA9422M PMIC version, operating all buck regulators at 2 MHz
USB-C Cable
Spare jumpers

$170.00 USD

In Stock :5

Normally ships 1-2 business days

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
