Name: iMX RT700 Evaluation Kit
Price: 187.23 USD
Availability: InStock

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

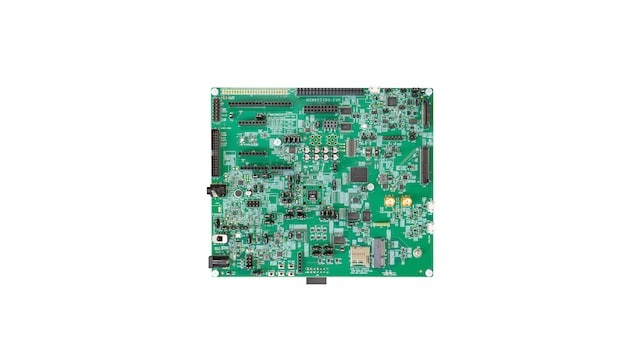

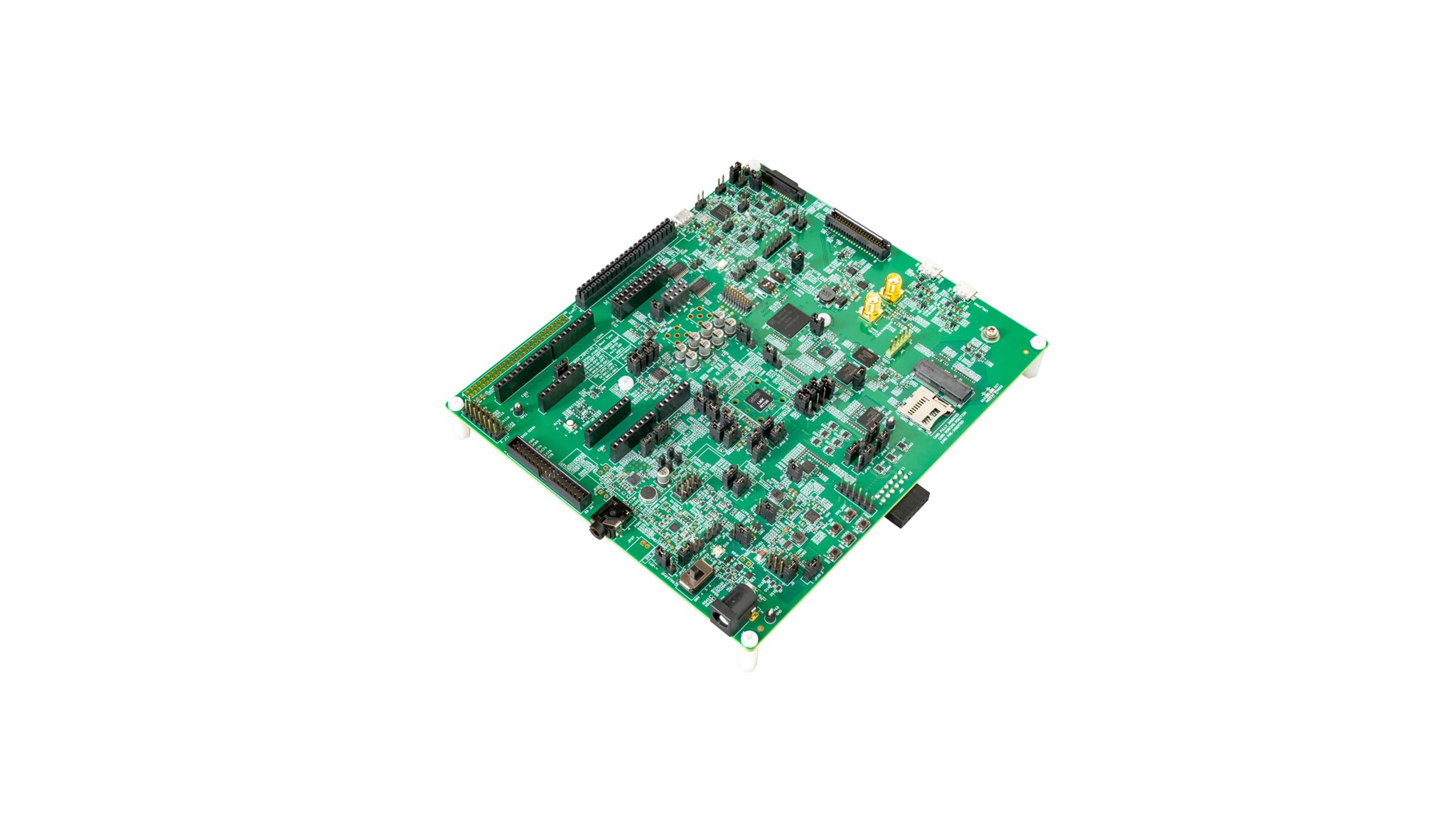

The MIMXRT700-EVK evaluation board provides a powerful, extendable platform for evaluation and prototyping with the i.MX RT700 series crossover MCUs featuring dual ARM Cortex-M33 cores, Cadence DSP cores, and GPU core using the MCUXpresso suite of software and tools. Arduino UNO, M.2, PMod(R), microphone and display connectors enable flexible expansion options, with off the shelf LCD panels for wearable and other applications requiring high performance HMI solutions. The boards feature a high-speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-link LITE from SEGGER.

Design Files

Software

Product Details

Block Diagram

i.MX RT700 Evaluation Kit

Get diagram PDF

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

i.MX-RT700: i.MX RT700 Crossover MCU with Arm® Cortex®-M33, NPU, DSP and GPU Cores

Features

Processor

Compute Cortex-M33 running up to 325 MHz
Sense Cortex-M33 running up to 250 MHz
Compute Cadence HiFi4 DSP running up to 325 MHz
Sense Cadence HiFi1 DSP running up to 250 MHz
Internal SRAM (7.5 MB)

Board Memory

Macronix Octal SPI Flash (64 MB) / Winbond QSPI Flash (64 MB)
Macronix Octal SPI Flash (64 MB) / Winbond HyperRAM 16-bit (512 MB)
Winbond HyperRAM 16-bit (512 MB)
SanDisk eMMC (16 GB)

Debug Capabilities

10-pin and 20-pin SWD connectors supporting external debug/trace probes
On-board debug probe with VCOM and CMSIS-DAP or J-link firmware options

Expansion Connectors

Arduino expansion
PMOD expansion
Mikroe Click expansion
Expansion connector for 8-channel microphone board
I3C header
Flexcomm header
FlexIO display header, which enables you to connect an optional TFT Proto 5” CAPACITIVE from MikroElektronika (5” display board with capacitive touch)
FlexIO camera header, which enables you to connect and optional OV7675 camera
MIPI display connectors, which enables you to connect to optional MIPI displays available from NXP

User Interface

Reset and user buttons for easy testing of software functionality
User LEDs
Boot Switch

Connectivity

High-speed eUSB Native Connectors
High-speed USB port with micro-A/B connector for the host or device functionality
SD card slot

Audio

Audio codec with stereo line out/headphone jack and Mic in
Digital Mics
Analog Mics
DMIC expansion connector supporting up to 8 DMICs
External Audio Card Connector

Buy Options

Click to expand

MIMXRT700-EVK
Active

i.MX RT700 Evaluation Kit.

Kit Contains

1 PWA, MIMXRT700-EVK
1 Cable, USB AM to micro USB 5P 1.0 M
1 power supply (100/240 V input, 5 V 5 A output)
1 quick start guide, MIMXRT700-EVK

$187.23 USD

In Stock :71

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

ZC143AC72MIPI
Active

1.43" Wearable Display ZC143AC72MIPI.

$90.00 USD

In Stock :17

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Click to expand

8CH-DMIC
Active

Configurable Digital Microphone Board.

Expansion Board: Yes

$90.85 USD

In Stock :11

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Click to expand

G1120B0MIPI
Active

1.2 inch wearable display, 390x390, 1-lane MIPI interface.

Expansion Board: Yes

$90.85 USD

In Stock :3

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Click to expand

AUD-EXP-42448
Active

Multichannel Audio Codec Card for EVKs.

Expansion Board: Yes

$44.85 USD

In Stock :3

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Click to expand

RK055HDMIPI4MA0
Active

5.5" LCD Panel.

Expansion Board: Yes

$90.85 USD

In Stock :2

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Design Resources

Related Hardware

Quick reference to our board types.

1 hardware offering

Reference Design
1.43" Wearable Display ZC143AC72MIPI
Active

ZC143AC72MIPISimilar

Design Files

Quick reference to our design files types.

1 design file

Design Files - miscellaneous
i.MX RT700 Evaluation Kit Design Files

ZIPRev 1.0Jul 16, 2025 11:09:0053.50 MBMIMXRT700-EVK-DESIGN-FILES

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Software

Quick reference to our software types.

2 software files

Examples and Quick Start Software
MCUXpresso Software Development Kit (SDK)

Download Options
Development IDEs and Build Tools
MCUXpresso Integrated Development Environment (IDE)

Download Options

Note: For better experience, software downloads are recommended on desktop.

i.MX RT700 Evaluation Kit

Product Details

Block Diagram

i.MX RT700 Evaluation Kit

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

Features

Processor

Board Memory

Debug Capabilities

Expansion Connectors

User Interface

Connectivity

Audio

Applications

Consumer

Industrial

Buy Options

MIMXRT700-EVK Active

ZC143AC72MIPI Active

8CH-DMIC Active

G1120B0MIPI Active

AUD-EXP-42448 Active

RK055HDMIPI4MA0 Active

Documentation

Filter by

Application Note (16)

i.MX RT700 OpenVG Introduction[AN14848]

Secure Debug on i.MX RT700[AN14825]

Learning VGLite API Programming on i.MX RT Series[AN14210]

i.MX RT700 Camera Demo using FlexIO through eDMA[AN14836]

USB Camera Object Detection Pipeline on i.MX RT700[AN14718]

Automatic Voltage Scaling using Process, Voltage, and Temperature Sensor (PVTS) on i.MX RT700[AN14791]

i.MX RT700 Deep Sleep and Wake-up Time[AN14852]

i.MX RT700 MIPI DSI Display Application with Two Low-Power Use Cases[AN14611]

Secure Boot on i.MX RT700[AN14821]

Developing Environment Setup for i.MX RT700 EZH-V[AN14614]

Replicate the Power Consumption Data of the Data Sheet on the MIMXRT700- EVK Board[AN14600]

Cycle Count Calculator and Guideline for i.MX RT700[AN14758]

i.MX RT700 eIQ Neutron NPU Enablement and Performance[AN14700]

i.MX RT700 HiFi4 and HiFi1 Power Consumption Measurement and Data Sheet Power Numbers Replicate[AN14773]

Multi-core Application Development on i.MX RT700[AN14618]

i.MX RT700 Smartwatch Demo with Face Detection[AN14849]

Application Note Software (7)

Application Note Software for AN14718[AN14718SW]

Application note software for AN14825[AN14825SW]

Application Note Software for AN14773[AN14773SW]

Application Note Software for AN14821[AN14821SW]

Application Note Software for AN14614[AN14614SW]

Application Note Software for AN14618[AN14618SW]

Application note software for AN14210[AN14210SW]

Data Sheet (1)

i.MX RT700 Crossover Microcontroller Data Sheet[IMXRT700EC]

Errata (1)

RT700 Errata[RT700_0P77N]

Quick Reference Guide (1)

Quick Start Guide MIMXRT700-EVK[IMXRT700EVKQSG]

Reference Manual (1)

i.MX RT700 Crossover Microcontroller Reference Manual[IMXRT700RM]

User Guide (2)

i.MX RT700 Hardware Design Guide[UG10161]

Getting Started with i.MXRT7xx-EVK [GS-IMX-RT700]

User Manual (1)

MIMXRT700-EVK Board User Manual[UM12188]
