FRDM i.MX 93 Development Board

FRDM-IMX93
Active

Roll over image to zoom in

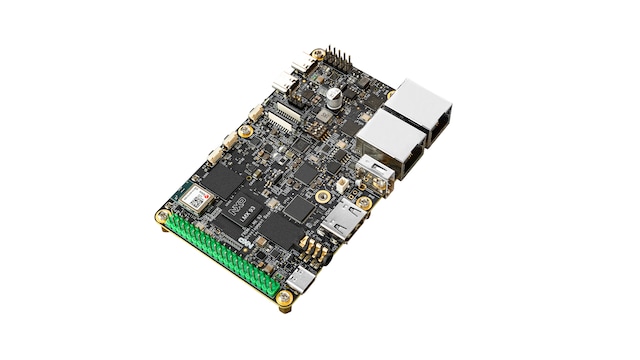

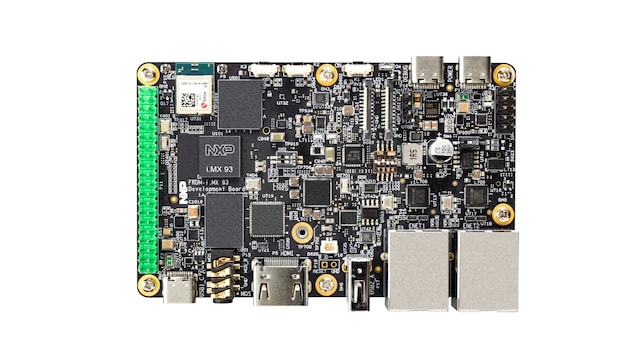

The FRDM i.MX 93 development board is a low-cost and compact development board featuring the i.MX93 applications processor. Equipped with an onboard IW612 module, featuring NXP's Tri-Radio solution with Wi-Fi 6 + Bluetooth 5.4 + 802.15.4, the board is ideal for developing modern Industrial and IoT applications. This development board includes an HDMI display interface, LPDDR4/LPDDR4X, eMMC storage for quick boot times, PMIC and expansion capabilities. The FRDM i.MX 93 board also supports GoPoint for i.MX Applications Processors, which accelerates the time to market by providing comprehensive demos for a variety of use cases.

Block Diagram

FRDM-IMX93

FRDM i.MX-93
Get diagram PDF

Supported Devices

Analog and Mixed Signal

Real-Time Clocks

  • PCF2131: Nano-Power Highly Accurate RTC with Integrated Quartz Crystal

Interfaces

General Purpose I/O (GPIO)

  • PCAL6524: Ultra-Low-Voltage Translating 24-Bit Fm+ I²C-Bus/SMBus I/O Expander
  • PCAL6408A: Low-Voltage Translating, 8-Bit I²C-Bus/SMBus I/O Expander

3.3 V / 5 V IO CAN Transceivers

  • TJA1051: High-Speed CAN Transceiver

USB Interfaces

Power Management

5 V PMIC Solutions

  • PCA9451A: PCA9451A Power Management IC for i.MX 93x/91x Application Processor

VBUS Protection

  • NX20P3483UK: USB PD and Type-C High-Voltage Sink/Source Combo Switch with Protection
  • NX20P5090UK: High-Voltage USB PD Power Switch

Data Protection

  • NX20P0407: USB Type-C CC and SBU Protection IC

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • IW612: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.4 + 802.15.4 Tri-Radio Solution

Processors and Microcontrollers

i.MX 9 Processors

  • i.MX93: i.MX 93 Applications Processor Family – Arm® Cortex®-A55, ML Acceleration, Power Efficient MPU

Features

Processor

  • i.MX 93 Applications Processor
  • Dual Cortex-A55 @1.7GHz
  • Cortex-M33 @250MHz
  • Arm® Ethos™ U-65 Micro-NPU
  • EdgeLock® Secure Enclave

Memory​

  • 2 GB LPDDR4X / LPDDR4
  • 32 GB eMMC5.1
  • MicroSD slot
  • EEPROM

Display and Camera Interfaces​

  • x4 lane MIPI DSI interface, FPC 22-Pin connector
  • x4 lane LVDS to HDMI, HDMI connector
  • x2 lane MIPI CSI-2 interface, FPC 22-Pin connector

Wireless​

  • u-blox MAYA-W276-00B Tri-Radio Wi-Fi 6, Bluetooth 5.4, and 802.15.4 module
  • Dual-mode Bluetooth classic and Bluetooth Low Energy 5.4
  • 802.15.4 radio supporting Thread and Zigbee

Audio

  • 3.5mm headphone jack for MQS support

Connectivity

  • *DNP M.2 socket
  • USB2.0 Type-C connector
  • USB2.0 type A connector
  • GbE RJ45 x 2
  • CAN (HDR)
  • 2x20 EXPI
  • I²C HDR
  • ADC HDR

Debug

  • SWD connector
  • UART via USB-Type C

Tools and OS Support

  • Linux®
  • FreeRTOS
