NXP EasyEVSE Development Platform (i.MX 93, Linux OS, Wi-Fi 6)

EV-CHRG-STN-MPU
Active

Click over video to play

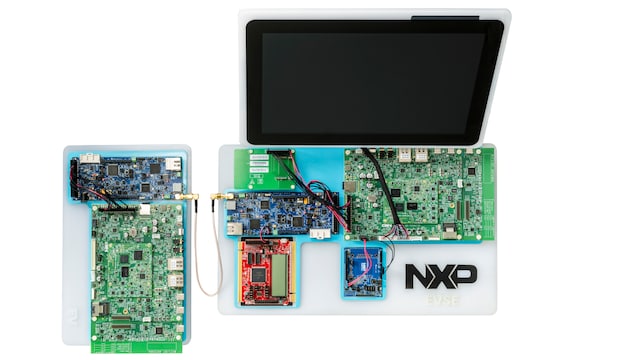

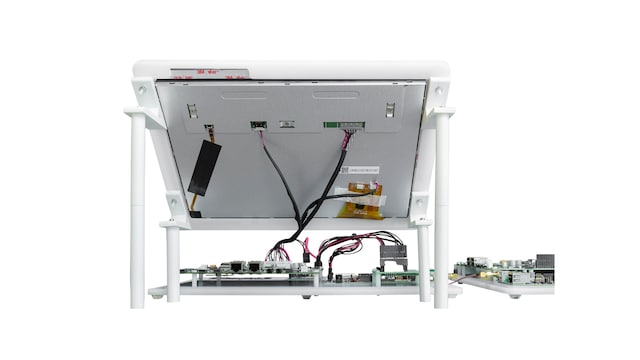

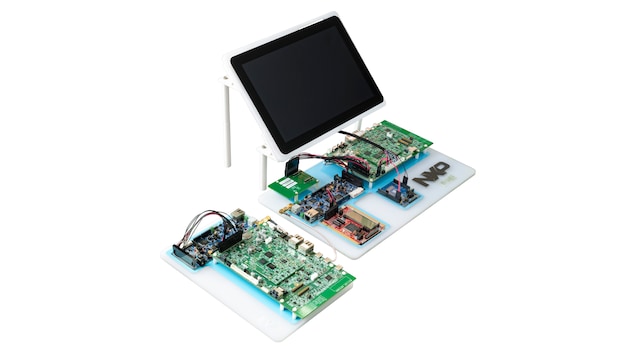

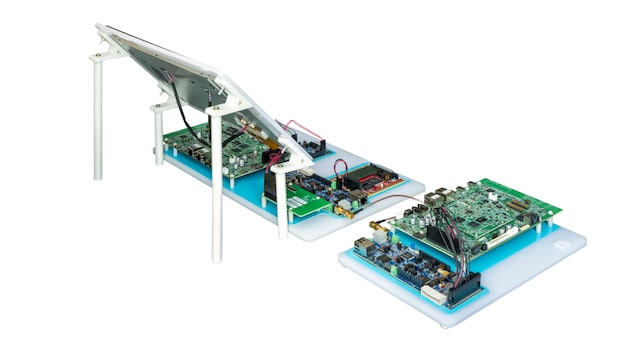

The EasyEVSE development platform provides software, boards, cables, design files and detailed instructions to quickly simulate a charging control session between a charging station and an electric vehicle. This modular scalable platform is the foundation for developing secure wireless cloud connectivity, accurate energy billing, safe control, one-tap NFC authentication and ISO 15118 power line communications across a HomePlug Green PHY.

The ISO 15118-2 platform variant supports traditional EV charging with a Plug and Charge feature to simplify the user experience. The ISO 15118-20 platform variant adds support for bi-directional power transfer between the electric vehicle supply equipment (EVSE) and the vehicle.

The development platform supports two hardware and software solutions: EVerest or proprietary software ISO 15118 stack.

Block Diagram

Choose a diagram:

EasyEVSE Development Platform with proprietary ISO 15118 stack

NXP EasyEVSE Development Platform Block Diagram

EasyEVSE Development Platform on EVerest

EasyEVSE Development Platform on EVerest – block diagram
Get diagram PDF

Features

Hardware

  • Chose the needed hardware for the EVerest or proprietary solution.
  • EVerest solution:
    • 1 x MCIMX93-EVK board or 1 x FRDM-IMX93 for the EVSE side. The MCIMX93-EVK board has the LBES5PL2EL Murata module with NXP IW612 chipset (Wi-Fi 6, BLE 5.2) included. The FRDM-IMX93 uses the onboard MAYA-W276-00B module with the NXP IW412 chipset
    • 2 x EVSE-SIG-BRD2X signal board with a microcontroller and transceivers to support a variety of EV charging control protocols, such as an NXP LPC55S36 MCU with PWM for the SAE J1772 control pilot, an NXP TJA1021BT LIN transceiver for SAE J3068, and a Lumissil CG5317 HomePlug Green PHY for ISO 15118 (one board for the EV and one board for the EVSE side)
    • 1 x OM-SE050ARD-E EdgeLock SE050 development board for the EVSE side
    • 1 x TWR-KM35Z75M metering board for the EVSE side
    • 1 x OM27160B1EVK NFC development kit for the EVSE side
    • 1 x DY1212W-4856 12.1" TFT LCD display with LVDS connector (touch panel) for the EVSE side. When using the MCIMX93-EVK. When using the FRDM-IMX93, any HDMI supported screen can be used for the graphical user interface on the EVSE side
    • 1 x MIMXRT1060-EVK or MIMXRT1060-EVKB or MIMXRT1060-EVKC or MIMXRT1064-EVK for the EV side
  • Proprietary solution:
    • The solution ships as a ready-to-use, wired and pre-tested kit containing the following hardware:
    • 2 x MCIMX93-EVK boards which include the LBES5PL2EL Murata module with NXP IW612 chipset (Wi-Fi 6, BLE 5.2)
    • 2 x EVSE-SIG-BRD2X signal board with a microcontroller and transceivers to support a variety of EV charging control protocols, such as an NXP LPC55S36 MCU with PWM for the SAE J1772 control pilot, an NXP TJA1021BT LIN transceiver for SAE J3068, and a Lumissil CG5317 HomePlug Green PHY for ISO 15118
    • 1 x OM-SE050ARD-E EdgeLock SE050 development board
    • 1 x TWR-KM35Z75M metering board
    • 1 x OM27160B1EVK NFC development kit
    • 1 x DY1212W-4856 12.1" TFT LCD display with LVDS connector (touch panel)
    • 10 x cables
    • 3 x power supplies
    • 2 x plexiglass mounts

Software

  • The solution contains specific application software and miscellaneous tools that help to evaluate, run and further develop a full-featured EVSE
  • Complimentary example software is downloadable at the link below and consists:
    • Sample source code on the MPU:
      • EasyEVSE Yocto manifest
      • EasyEVSE Yocto meta layer containing recipes for building the image
      • EasyEVSE Linux userspace applications
    • Sample source code on the KM MCU:
      • Meter project for TWRKM3x7x board
    • Azure IoT Central templates
      • EasyEVSE application template shareable link (EVSEAppShareLink)
      • EasyEVSE IoT central JSON file

Additional Miscellaneous Hardware

  • EVerest solution:
    • EVSE to EV side: 1 x male-to-male 2.54-mm jumper cable (when not using a coaxial cable) to connect to the EVSE-SIG-BRD2X on the EV side to 1 x EVSE-SIG-BRD2X on the EVSE side
    • EVSE side: 2.54-mm jumper cables: male-to-female cables and male-to-male cables to connect the MCIMX93-EVK together with the EVSE-SIG-BRD2X, OM-SE050ARD-E, TWR-KM35Z75M and the OM27160B1EVK
  • EVerest and proprietary solution:
    • EVSE side: 1 x NFC passive device; for example, blank NFC MIFARE or NTAG sample cards

Documentation

  • User guide describes how to get the EasyEVSE up and running using a simplified setup
  • User manual provides detailed instructions to use the development platform
  • Step-by-step instructions are shown when you click the Get Started button above

Availability

  • The kit for the proprietary solution is ordered from one single part number, shown in the Buy Options section below
  • The development boards for the EVerest solution are orderable from the product table below

Buy Options

MIMXRT1064-EVK-Image

Click to expand

MIMXRT1064-EVK
Active

i.MX RT1064 Evaluation Kit.

    $148.35 USD
    In Stock :8

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    MIMXRT1060-EVKC-Image

    Click to expand

    MIMXRT1060-EVKC
    Active

    i.MX RT1060 Evaluation Kit.

      $113.85 USD
      In Stock :6

      Normally ships 1-2 business days

      ADD TO CART
      TWR-KM35Z75M-Image

      Click to expand

      TWR-KM35Z75M
      Active

      KM Series Tower System Module for KM35 MCUs.

        $161.00 USD
        In Stock :5

        Normally ships 1-2 business days

        ADD TO CART
        Order from distributors
        EVSE-SIG-BRD2X-Image

        Click to expand

        EVSE-SIG-BRD2X
        Active

        EasyEVSE EV Charging Signal Board.

          $600.00 USD
          In Stock :5

          Normally ships 1-2 business days

          ADD TO CART
          Order from distributors
          EVSE-IMX93-CBL-Image

          Click to expand

          EVSE-IMX93-CBL
          Active

          Cable kit to connect the EasyEVSE Development Platform (Linux OS, Wi-Fi 6).

            $700.00 USD
            In Stock :4

            Normally ships 1-2 business days

            ADD TO CART
            Order from distributors
            EVSE-IMX93-Image

            Click to expand

            EVSE-IMX93
            Active

            NXP EasyEVSE Development Platform (i.MX 93, Linux OS, Wi-Fi 6).

              $3900.00 USD
              In Stock :2

              Normally ships 1-2 business days

              ADD TO CART
              Order from distributors
              MIMXRT1060-EVKB-Image

              Click to expand

              MIMXRT1060-EVKB
              Active

              i.MX RT1060 Evaluation Kit.

                $113.85 USD
                In Stock :2

                Normally ships 1-2 business days

                ADD TO CART
                Order from distributors
                FRDM-IMX93-Image

                Click to expand

                FRDM-IMX93
                Active

                NXP EasyEVSE Development Platform (i.MX 93, Linux OS, Wi-Fi 6).

                  $80.00 USD
                  Pending Stock
                  ADD TO CART
                  Order from distributors
                  MCIMX93-EVK-Image

                  Click to expand

                  MCIMX93-EVK
                  Active

                  MPU / Linux® Hosted Matter Development Platform.

                  • Peripherals: CAN, USB
                  • Connector Type: M.2, USB-C
                  • Power Management: PMIC onboard
                  • Processing: Arm Cortex-A55
                  $622.00 USD
                  Pending Stock
                  ADD TO CART
                  Order from distributors
                  OM-SE050ARD-E-Image

                  Click to expand

                  OM-SE050ARD-E
                  Active

                  EdgeLock SE050E Arduino compatible development kit.

                  • Expansion Board: Yes
                  • Peripherals: I²C
                  • Connector Type: Arduino-Compatible
                  $60.00 USD
                  Pending Stock
                  ADD TO CART
                  Order from distributors
                  OM27160B1EVK-Image

                  Click to expand

                  OM27160B1EVK
                  Active

                  OM27160: Development Kits for PN7160 Plug’n Play NFC Controller.

                    $74.75 USD
                    Pending Stock
                    ADD TO CART
                    Order from distributors

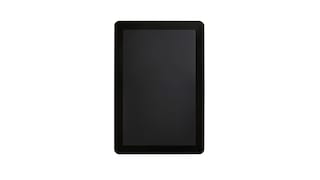

                    DY1212W-4856-Image
