18 Channel Li-Ion Battery Cell Controller IC ASIL D

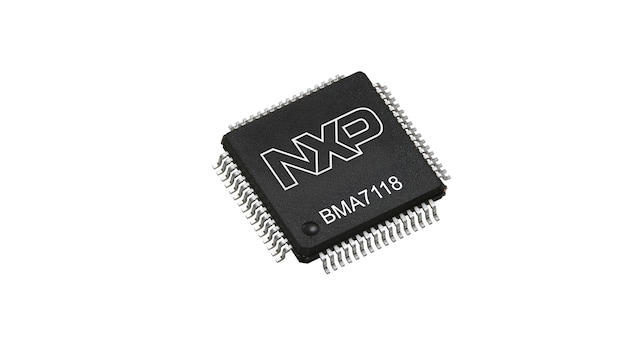

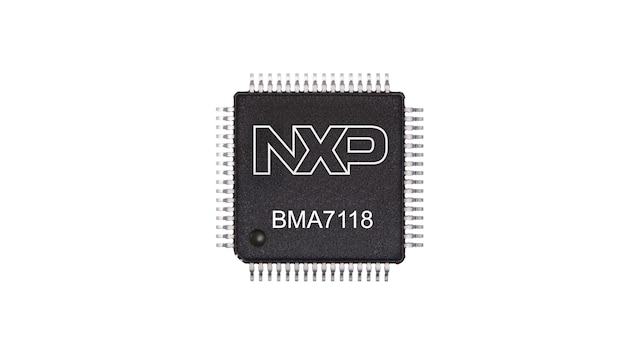

The BMA7118 is an automotive lithium-ion (Li-ion) battery cell controller integrated circuit (IC) with a dedicated, high-accuracy analog-to-digital converter (ADC) per voltage measurement channel with high synchronization capability—a requirement for electrochemical impedance spectroscopy (EIS).
Upgrading to EIS is lower in cost, due to pin compatibility and shared software across the product family. BMA7118 offers low 5 mA current consumption due to its integrated DC-to-DC converter. As a fully redundant and independent internal architecture, it achieves automotive safety integrity level ASIL D functional safety.
Product Details
Features
- Supports 8 to 18 cells per device
- Dedicated, high-accuracy ADC per voltage measurement channel with high synchronization capability required for EIS
- Typical ±0.8 mV measurement error with ultra-low long-term drift
- ISO 26262 ASIL D support for cell voltage and temperature measurements
- External temperature and auxiliary voltage measurements measurement capability
- Communication through isolated daisy chain up to 62 nodes or serial peripheral interface (SPI)
- Diagnostics, functional safety and robustness
- Low external bill of materials (BOM) cost
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Design Resources
Hardware
Quick reference to our
board types.
2 hardware offerings
-

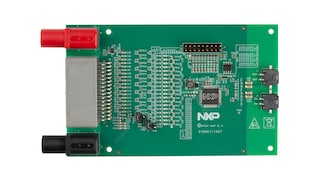

Evaluation and Development BoardsBMA7118 Evaluation Board with Isolated Daisy Chain
