BLDC/PMSM Low Voltage Motor Control Accessory Kit

BLDC-KIT
Active

Roll over image to zoom in

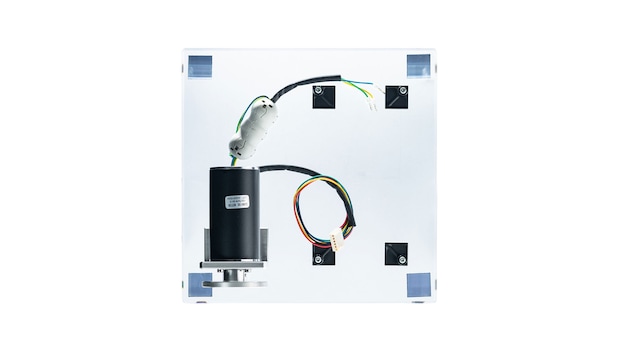

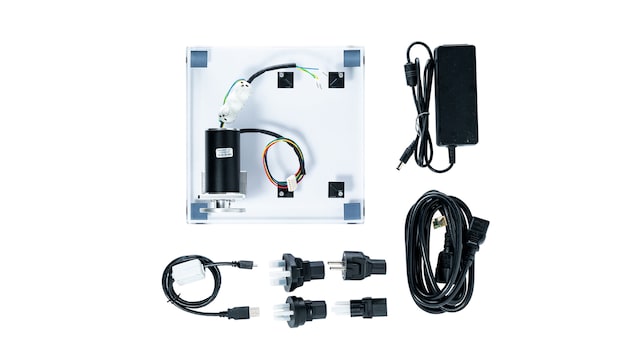

The BLDC_KIT accessory kit is a generic set for development of 12 V and 24 V, 3 ph-motor control applications. The kit is designed to enable rapid prototyping and evaluation of motor control applications without the need to wait for the final hardware design. The set consists in a BLDC motor mounted in the frame, a 12 V power supply, a micro USB cable and standoffs.

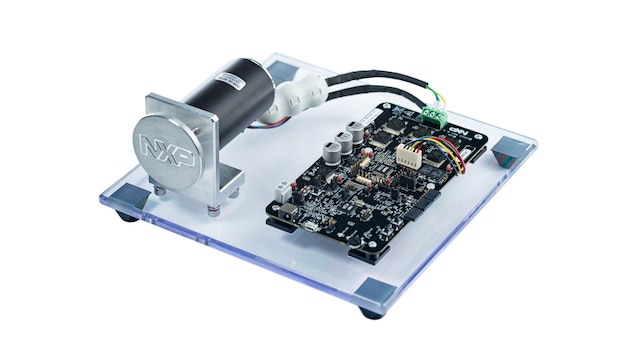

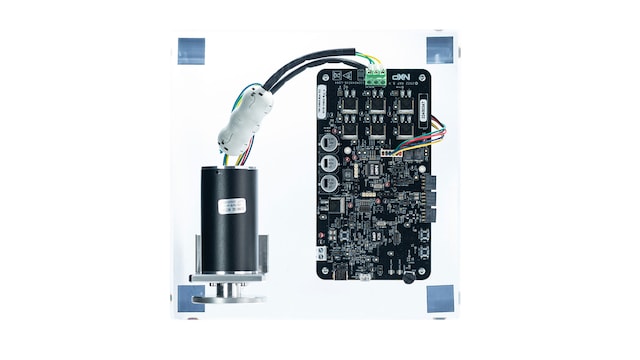

The BLDC_KIT is compatible (and recommended) for S32M2 evaluation boards, when developing motor control applications. However, it is not limited to any specific microcontroller hardware platform.

Supported Devices

Processors and Microcontrollers

S32M Integrated Solutions for MC

  • S32M2: S32M2 Integrated Solution for 12V Motor Control

Features

  • Includes motor 42BLY3A78-24110: 3-phase BLDC motor, 24 V, 95 W, 9000 rpm, 6 A, 2 pole pairs, hall sensors

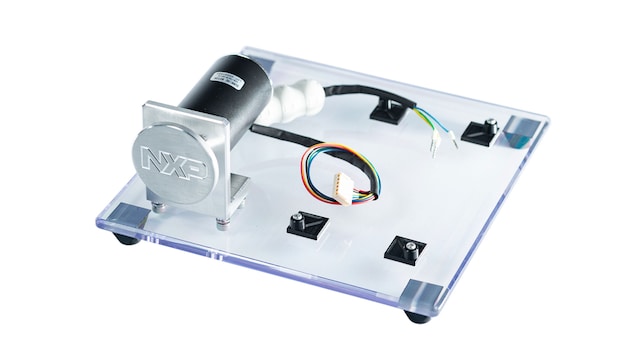

  • Robust mechanical setup with plexi frame, L-flange and rotor disc
  • Includes power supply GST60A12-P1J: 12 VDC, 5 A with set of international plug adapters
  • Micro USB cable
  • 4x AST3-10B: adhesive standoffs for PCB mounting

Buy Options

BLDC-KIT-Image

Click to expand

BLDC-KIT
Active

BLDC/PMSM Low Voltage Motor Control Accessory Kit.

    $450.00 USD
    In Stock :25

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
