800W Bidirectional DC-DC Conversion Solution Based on Programable Digital Signal Controller

BIDIRECTIONAL-RESONANT-DC-DC
Active
Expansion Board

Roll over image to zoom in

This Design is a proof of concept that will help customer designing their own bidirectional DC-DC convertion systems , it has been fully developped , validated and tested. NXP provides all the necessary material to customize this design with schematics, bill of material, firmware, application note, technical training video, user's guide, getting started guide.

Block Diagram

Bidirectional 800w DC-DC Conversion Based on Programable Digital Signal Controller

Bidirectional DC-DC Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

32-Bit 56800EX/EF Core

  • MC56F83xxx: Performance Level Digital Signal Controllers, USB FS OTG, CAN FD

Powertrain and Engine Control

  • GD3100: Advanced High Voltage Isolated Gate Driver for IGBT and SiC MOSFETs

Interfaces

CAN with Flexible Data Rate

  • TJA1052IT: Galvanically-Isolated High-Speed CAN Transceiver

Power Management

AC-DC Controllers with Integrated Power Switch

  • TEA1721AT: HV Start-Up Flyback Controller with Integrated MOSFET for 5 W Applications, F~burst = 430 Hz

Features

Key Features

  • Fully programmable Digital Signal Controller based solution
    • Highly optimized libraries, RTCESL, help speed development and improve code execution efficiency
  • CLLC topology to enable bi-directional power conversion
  • Active synchronous rectifier with optimized controller peripherals
  • Hybrid modulation mode of the PFM + PSM + burst mode for wide voltage gain range and high efficiency
  • 2P2Z digital controller enabled by NXP library for fast dynamic response
  • Constant voltage (CV) and constant current (CC) working mode for battery application
  • Modular software and hardware design for convenient internal reuse and customer evaluation
  • Isolated USB interface for the FreeMASTER connection
  • Isolated SCI communication between primary side and secondary side
  • Over-current, over/under-voltage, and over-temperature protection functions

Buy Options

HVP-56F83783-Image

Click to expand

HVP-56F83783
Active

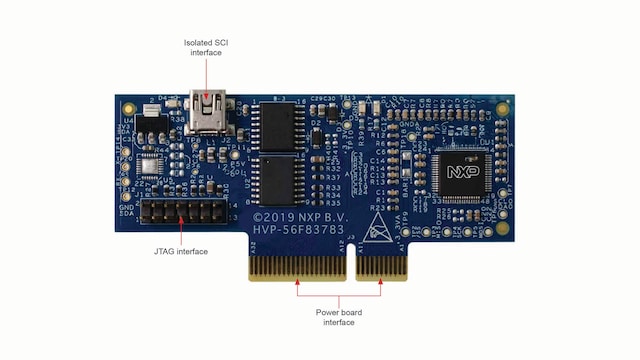

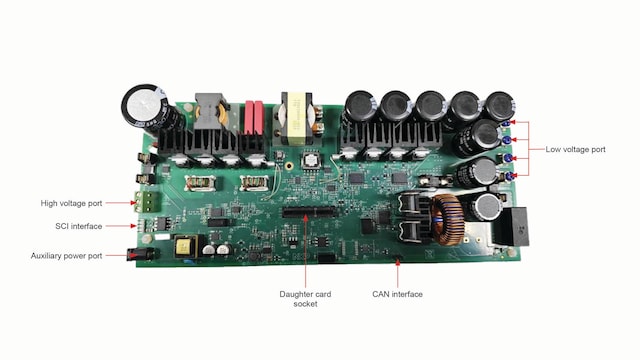

High-Voltage Development Platform.
