800W Bidirectional AC-DC Conversion Solution Based on Programmable Digital Signal Controller

BIDIRECTIONAL-AC-DC-REF-DESIGN
Active
Expansion Board

Roll over image to zoom in

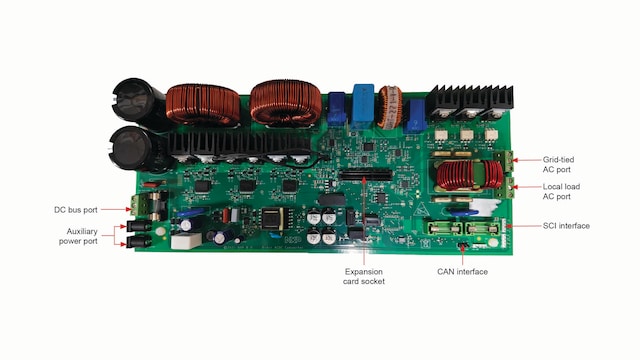

This design is a proof of concept that will help customers design their own bidirectional AC-DC conversion systems. It has been fully developed, validated and tested. NXP provides all the necessary material to customize this design with schematics, bill of material, firmware, application note, technical training video, user guide and getting started guide.

Block Diagram

Bidirectional 800w AC-DC Conversion Based on Programmable Digital Signal Controller

Bidirectional AC-DC Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

32-Bit 56800EX/EF Core

  • MC56F83xxx: Performance Level Digital Signal Controllers, USB FS OTG, CAN FD

Powertrain and Engine Control

  • GD3100: Advanced High Voltage Isolated Gate Driver for IGBT and SiC MOSFETs

Interfaces

CAN with Flexible Data Rate

  • TJA1052IT: Galvanically-Isolated High-Speed CAN Transceiver

Power Management

AC-DC Controllers with Integrated Power Switch

  • TEA1721AT: HV Start-Up Flyback Controller with Integrated MOSFET for 5 W Applications, F~burst = 430 Hz

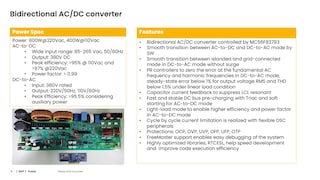

Features

  • Fully programmable digital signal controller based solution
  • Smooth transition between AC-to-DC and DC-to-AC mode by SW
  • PR controllers to zero the error at the fundamental AC frequency and harmonic frequencies in DC-to-AC mode, steady-state error below 1% for output voltage RMS and THD below 1.5% under linear load condition
  • Capacitor current feedback to suppress LCL resonant
  • Fast and stable DC bus pre-charging with Triac and soft starting for AC-to-DC mode
  • Light-load mode to enable higher efficiency and power factor in AC-to-DC mode
  • Cycle by cycle current limitation is realized with flexible DSC peripherals
  • Protections: OCP, OVP, UVP, OFP, UFP, OTP
  • Highly optimized libraries, RTCESL, help speed development and improve code execution efficiency

Buy Options

HVP-56F83783-Image

Click to expand

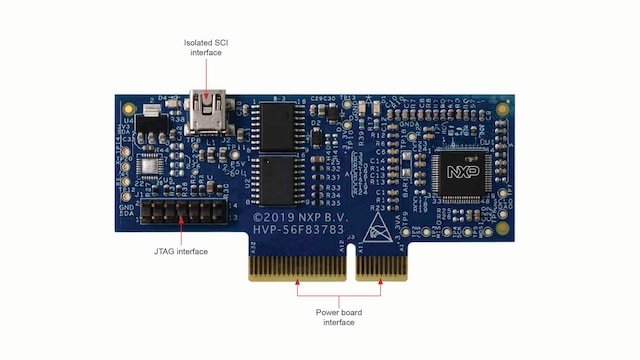

HVP-56F83783
Active

High-Voltage Development Platform.

  • Expansion Board: Yes
$57.50 USD
Pending Stock
ADD TO CART
